基于Ubuntu22.04部署Openstack

1. 控制节点（controller）

sudo passwd root (改root密码)

sed -i '/PermitRootLogin/d' /etc/ssh/sshd_config
echo "PermitRootLogin yes" >> /etc/ssh/sshd_config
systemctl restart sshd （设置SSH root登录）

sudo nano /etc/netplan/01-netcfg.yaml #文件名因人而异

network:
  version: 2
  renderer: networkd
  ethernets:
    ens33:
      dhcp4: true
      optional: true
    ens34:
      addresses: [192.168.100.10/24]
      # 如果你的仅主机网络不需要网关和DNS，可以省略以下两行
      # gateway4: 192.168.100.1
      # nameservers:
      #   addresses: [8.8.8.8, 114.114.114.114]
      dhcp4: false
      optional: true

sudo netplan apply

bash <(curl -sSL https://linuxmirrors.cn/main.sh)

2. compute节点

过程同上
在设置静态ip的时候 compute节点的IP是192.168.100.20

一、环境准备

1. 虚拟机配置要求（每台）：

   • 至少4GB内存（推荐8GB以上）
   • 至少2个CPU核心
   • 至少40GB磁盘空间
   • 至少2块网卡（一块管理网络，一块数据网络）

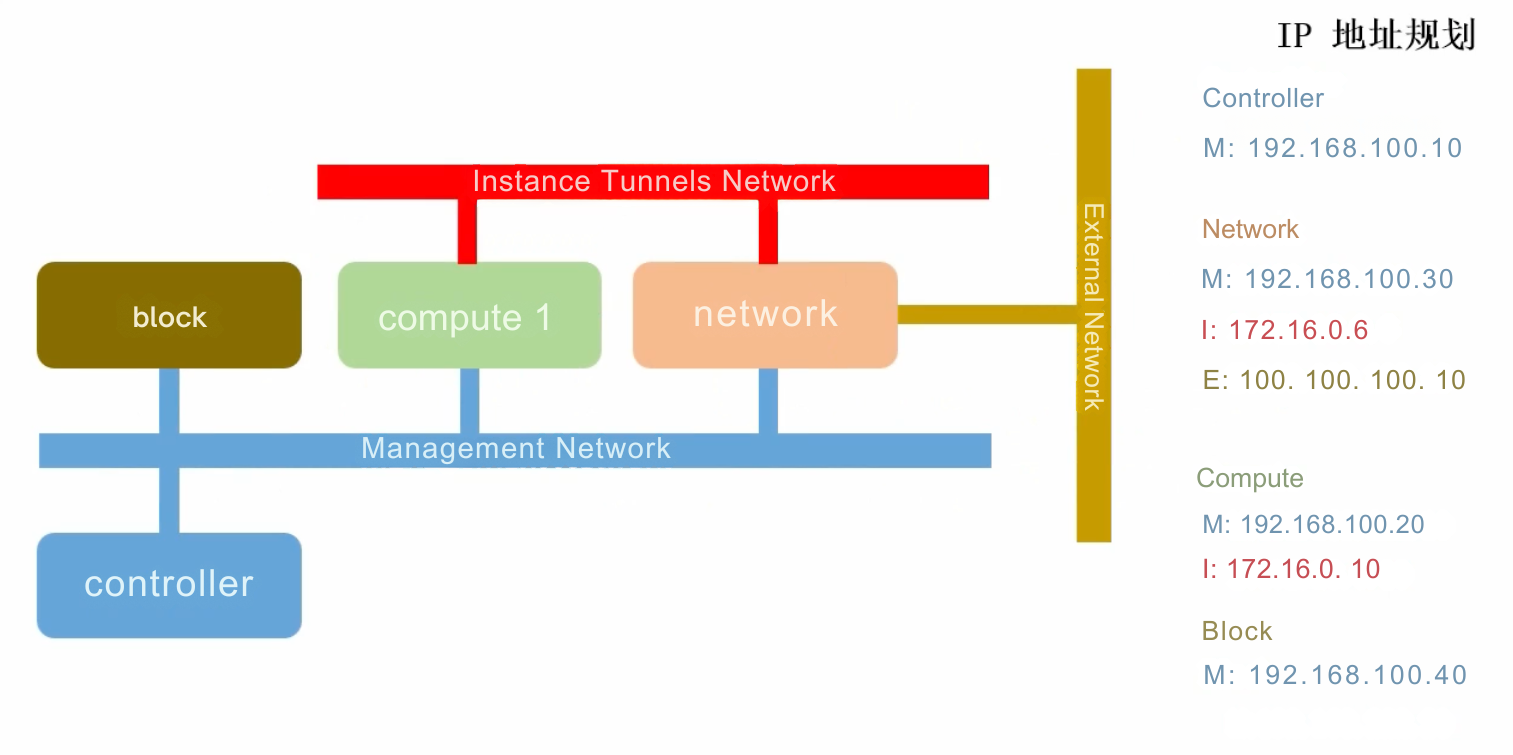

2. 网络规划：

   • 管理网络：用于OpenStack各组件通信（例如192.168.100.0/24）
   • 数据网络：用于虚拟机实例通信（例如192.168.200.0/24）

3. 修改主机名和hosts文件：在第一台节点（控制节点）：

   1. sudo hostnamectl set-hostname controller

   在第二台节点（计算节点）：

   1. sudo hostnamectl set-hostname compute

   编辑/etc/hosts文件，添加：

   1. 192.168.100.10 controller
   2. 192.168.100.20 compute

4. 安装依赖包：

   1. sudo apt update && sudo apt upgrade -y
   2. sudo apt install -y chrony python3-openstackclient

二、配置NTP时间同步

1. 在控制节点配置chrony：

   1. sudo nano /etc/chrony/chrony.conf

   添加：

   1. allow 192.168.100.0/24

   重启服务：

   1. sudo systemctl restart chronyd

2. 在计算节点配置chrony同步到控制节点：

   1. sudo nano /etc/chrony/chrony.conf

   添加：

   1. server controller iburst

   重启服务并验证：

   1. sudo systemctl restart chronyd
   2. chronyc sources

三、配置数据库（仅控制节点）

1. 安装MariaDB：

   1. sudo apt install -y mariadb-server python3-pymysql

2. 配置MySQL：

   1. sudo nano /etc/mysql/mariadb.conf.d/99-openstack.cnf

   添加以下内容：

   1. [mysqld]
   2. bind-address = 192.168.100.10
   3. default-storage-engine = innodb
   4. innodb_file_per_table = on
   5. max_connections = 4096
   6. collation-server = utf8_general_ci
   7. character-set-server = utf8

3. 重启服务并设置root密码：

   1. sudo systemctl restart mariadb
   2. sudo mysql_secure_installation

四、安装消息队列（仅控制节点）

1. 安装RabbitMQ：

   1. sudo apt install -y rabbitmq-server

2. 创建OpenStack用户：

   1. sudo rabbitmqctl add_user openstack RABBIT_PASS
   2. sudo rabbitmqctl set_permissions openstack ".*" ".*" ".*"

五、安装Memcached（仅控制节点）

1. sudo apt install -y memcached python3-memcache
2. sudo nano /etc/memcached.conf

修改监听地址为控制节点管理IP：

1. -l 192.168.100.10

重启服务：

1. sudo systemctl restart memcached

六、安装OpenStack组件

1. 身份服务(Keystone) - 控制节点

1. 创建数据库：

   1. mysql -u root -p
   2. CREATE DATABASE keystone;
   3. GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'localhost' IDENTIFIED BY 'KEYSTONE_DBPASS';
   4. GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'%' IDENTIFIED BY 'KEYSTONE_DBPASS';
   5. FLUSH PRIVILEGES;
   6. exit

2. 安装Keystone：

   1. sudo apt install -y keystone

   如果出现安装问题

sudo apt update --fix-missing
sudo apt install -f

3. 配置Keystone：

   1. sudo nano /etc/keystone/keystone.conf

   在[database]部分：

   1. connection = mysql+pymysql://keystone:KEYSTONE_DBPASS@controller/keystone

   在[token]部分：

   1. provider = fernet

4. 同步数据库并初始化Fernet密钥：

   1. sudo su -s /bin/sh -c "keystone-manage db_sync" keystone
   2. sudo keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
   3. sudo keystone-manage credential_setup --keystone-user keystone --keystone-group keystone

5. 部署Keystone：

   1. sudo keystone-manage bootstrap --bootstrap-password ADMIN_PASS \
   2. --bootstrap-admin-url http://controller:5000/v3/ \
   3. --bootstrap-internal-url http://controller:5000/v3/ \
   4. --bootstrap-public-url http://controller:5000/v3/ \
   5. --bootstrap-region-id RegionOne

6. 配置Apache：

   1. sudo nano /etc/apache2/apache2.conf

   添加：

   1. ServerName controller

   重启Apache：

   1. sudo systemctl restart apache2

7. 配置环境变量：

   1. export OS_USER_DOMAIN_NAME=Default
   2. export OS_PROJECT_DOMAIN_NAME=Default
   3. export OS_PROJECT_NAME=admin
   4. export OS_USERNAME=admin
   5. export OS_PASSWORD=ADMIN_PASS
   6. export OS_AUTH_URL=http://controller:5000/v3
   7. export OS_IDENTITY_API_VERSION=3
   8. export OS_IMAGE_API_VERSION=2

8. 创建域、项目、用户和角色：

   1. openstack domain create --description "An Example Domain" example
   2. openstack project create --domain default --description "Service Project" service
   3. openstack project create --domain default --description "Demo Project" demo
   4. openstack user create --domain default --password-prompt demo
   5. openstack role create user
   6. openstack role add --project demo --user demo user

输入demo用户密码（用于界面登陆、测试）

2. 镜像服务(Glance) - 控制节点

1. 创建数据库：

   1. mysql -u root -p
   2. CREATE DATABASE glance;
   3. GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'localhost' IDENTIFIED BY 'GLANCE_DBPASS';
   4. GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'%' IDENTIFIED BY 'GLANCE_DBPASS';
   5. FLUSH PRIVILEGES;
   6. exit

2. 创建服务凭证：

   1. openstack user create --domain default --password-prompt glance
   2. openstack role add --project service --user glance admin
   3. openstack service create --name glance --description "OpenStack Image" image
   4. openstack endpoint create --region RegionOne image public http://controller:9292
   5. openstack endpoint create --region RegionOne image internal http://controller:9292
   6. openstack endpoint create --region RegionOne image admin http://controller:9292

输入密码GLANCE_PASS

3. 安装Glance：

   1. sudo apt install -y glance

4. 配置Glance：

   1. sudo nano /etc/glance/glance-api.conf

找到[database]部分，添加以下内容（替换GLANCE_DBPASS为实际密码）：

[database]
connection = mysql+pymysql://glance:GLANCE_DBPASS@controller/glance

• 说明：这里的glance:GLANCE_DBPASS对应之前创建的数据库用户和密码，controller是数据库所在的控制节点主机名，glance是数据库名。

2. 配置认证信息（对接 Keystone）

在同一文件中，找到并配置以下部分：

（1）[keystone_authtoken]部分

[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = glance
password = GLANCE_PASS

（2）[paste_deploy]部分

[paste_deploy]
flavor = keystone

3. 配置镜像存储位置

找到[glance_store]部分，配置本地文件存储（默认推荐方式）：

[glance_store]
stores = file,http
default_store = file
filesystem_store_datadir = /var/lib/glance/images/

配置完成后，按Ctrl+O保存，Ctrl+X退出编辑器。
然后同步数据库：

1. sudo su -s /bin/sh -c "glance-manage db_sync" glance

2. 重启服务：

   1. sudo systemctl restart glance-api

3. 计算服务 (Nova) 部署

3.1 控制节点配置

3.1.1 创建数据库和服务凭证

1. 创建Nova数据库

mysql -u root -p
CREATE DATABASE nova_api;
CREATE DATABASE nova;
CREATE DATABASE nova_cell0;

GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'localhost' IDENTIFIED BY 'NOVA_DBPASS';
GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'%' IDENTIFIED BY 'NOVA_DBPASS';
GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'localhost' IDENTIFIED BY 'NOVA_DBPASS';
GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'%' IDENTIFIED BY 'NOVA_DBPASS';
GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'localhost' IDENTIFIED BY 'NOVA_DBPASS';
GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'%' IDENTIFIED BY 'NOVA_DBPASS';
FLUSH PRIVILEGES;
exit

2. 创建Nova服务凭证（需先加载admin环境变量）

export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_DOMAIN_NAME=Default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=ADMIN_PASS
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2

创建nova用户

openstack user create --domain default --password-prompt nova

输入密码NOVA_PASS

为nova用户添加admin角色

openstack role add --project service --user nova admin

添加PLACEMENT用户

openstack user create --domain default --password PLACEMENT_PASS placement
openstack role add --project service --user placement admin

创建nova服务

openstack service create --name nova --description "OpenStack Compute" compute

创建API端点

openstack endpoint create --region RegionOne compute public http://controller:8774/v2.1
openstack endpoint create --region RegionOne compute internal http://controller:8774/v2.1
openstack endpoint create --region RegionOne compute admin http://controller:8774/v2.1

3.1.2 安装 Nova 控制组件

sudo apt install -y nova-api nova-conductor nova-novncproxy nova-scheduler

3.1.3 配置 Nova

sudo nano /etc/nova/nova.conf

关键配置项：

[DEFAULT]
enabled_apis = osapi_compute,metadata
transport_url = rabbit://openstack:RABBIT_PASS@controller:5672/
my_ip = 192.168.100.10
use_neutron = True
firewall_driver = nova.virt.firewall.NoopFirewallDriver

[api_database]
connection = mysql+pymysql://nova:NOVA_DBPASS@controller/nova_api

[database]
connection = mysql+pymysql://nova:NOVA_DBPASS@controller/nova

[keystone_authtoken]
www_authenticate_uri = http://controller:5000/
auth_url = http://controller:5000/
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = nova
password = NOVA_PASS

[vnc]
enabled = True
server_listen = $my_ip
server_proxyclient_address = $my_ip

[glance]
api_servers = http://controller:9292

[oslo_concurrency]
lock_path = /var/lib/nova/tmp

[placement]
region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:5000/v3
username = placement
password = PLACEMENT_PASS

[neutron]
url = http://controller:9696
auth_url = http://controller:5000
auth_type = password
project_domain_name = Default
user_domain_name = Default
region_name = RegionOne
project_name = service
username = neutron
password = NEUTRON_PASS
service_metadata_proxy = True
metadata_proxy_shared_secret = METADATA_SECRET

3.1.4 同步数据库并初始化 cell

# 同步API数据库
sudo su -s /bin/sh -c "nova-manage api_db sync" nova

# 注册cell0数据库
sudo su -s /bin/sh -c "nova-manage cell_v2 map_cell0" nova

# 创建cell1单元格
sudo su -s /bin/sh -c "nova-manage cell_v2 create_cell --name=cell1 --verbose" nova

# 同步计算数据库
sudo su -s /bin/sh -c "nova-manage db sync" nova

# 验证cell0和cell1是否注册成功
sudo su -s /bin/sh -c "nova-manage cell_v2 list_cells" nova

3.1.5 重启 Nova 服务

sudo systemctl restart nova-api nova-scheduler nova-conductor nova-novncproxy
sudo systemctl enable nova-api nova-scheduler nova-conductor nova-novncproxy

3.2 计算节点配置

3.2.1 安装 Nova 计算组件

# 检查CPU是否支持虚拟化（输出非空则支持）
egrep -c '(vmx|svm)' /proc/cpuinfo

# 安装计算组件
sudo apt install -y nova-compute

3.2.2 配置 Nova 连接控制节点

sudo nano /etc/nova/nova.conf

关键配置：

[DEFAULT]
enabled_apis = osapi_compute,metadata
transport_url = rabbit://openstack:RABBIT_PASS@controller:5672/
my_ip = 192.168.100.20  # 计算节点IP
use_neutron = True
firewall_driver = nova.virt.firewall.NoopFirewallDriver

[keystone_authtoken]
www_authenticate_uri = http://controller:5000/
auth_url = http://controller:5000/
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = nova
password = NOVA_PASS

[vnc]
enabled = True
server_listen = 0.0.0.0
server_proxyclient_address = $my_ip
novncproxy_base_url = http://controller:6080/vnc_auto.html

[glance]
api_servers = http://controller:9292

[oslo_concurrency]
lock_path = /var/lib/nova/tmp

[placement]
region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:5000/v3
username = placement
password = PLACEMENT_PASS

[neutron]
service_metadata_proxy = True
metadata_proxy_shared_secret = METADATA_SECRET

3.2.3 重启计算服务

# 对于KVM虚拟化
sudo systemctl restart nova-compute
sudo systemctl enable nova-compute

# 检查计算节点是否注册到控制节点
# 在控制节点执行：

export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_DOMAIN_NAME=Default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=ADMIN_PASS
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2

openstack compute service list --service nova-compute

4. 网络服务 (Neutron) 部署

4.1 控制节点配置

4.1.1 创建数据库和服务凭证

# 1. 创建Neutron数据库
mysql -u root -p
CREATE DATABASE neutron;
GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' IDENTIFIED BY 'NEUTRON_DBPASS';
GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%' IDENTIFIED BY 'NEUTRON_DBPASS';
FLUSH PRIVILEGES;
exit

# 2. 创建服务凭证

export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_DOMAIN_NAME=Default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=ADMIN_PASS
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2

openstack user create --domain default --password-prompt neutron
输入密码`NEUTRON_PASS`
openstack role add --project service --user neutron admin
openstack service create --name neutron --description "OpenStack Networking" network

# 创建API端点
openstack endpoint create --region RegionOne network public http://controller:9696
openstack endpoint create --region RegionOne network internal http://controller:9696
openstack endpoint create --region RegionOne network admin http://controller:9696

4.1.2 安装 Neutron 控制组件

sudo apt install -y neutron-server neutron-plugin-ml2 neutron-linuxbridge-agent neutron-dhcp-agent neutron-metadata-agent

4.1.3 配置 ML2 插件（核心网络插件）

sudo nano /etc/neutron/plugins/ml2/ml2_conf.ini

配置：

[ml2]
type_drivers = flat,vlan,vxlan
tenant_network_types = vxlan
mechanism_drivers = linuxbridge,l2population
extension_drivers = port_security

[ml2_type_flat]
flat_networks = provider

[ml2_type_vxlan]
vni_ranges = 1:1000

[securitygroup]
enable_ipset = True

4.1.4 配置 Neutron 服务器

sudo nano /etc/neutron/neutron.conf

配置：

[DEFAULT]
core_plugin = ml2
service_plugins =
transport_url = rabbit://openstack:RABBIT_PASS@controller:5672/
auth_strategy = keystone
notify_nova_on_port_status_changes = True
notify_nova_on_port_data_changes = True

[database]
connection = mysql+pymysql://neutron:NEUTRON_DBPASS@controller/neutron

[keystone_authtoken]
www_authenticate_uri = http://controller:5000/
auth_url = http://controller:5000/
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = neutron
password = NEUTRON_PASS

[nova]
auth_url = http://controller:5000/
auth_type = password
project_domain_name = Default
user_domain_name = Default
region_name = RegionOne
project_name = service
username = nova
password = NOVA_PASS

4.1.5 配置 Linux 桥接代理

sudo nano /etc/neutron/plugins/ml2/linuxbridge_agent.ini

配置：

[linux_bridge]
physical_interface_mappings = provider:ens34  # 物理网卡替换为实际外部网络接口

[vxlan]
enable_vxlan = True
local_ip = 192.168.100.10  # 控制节点管理IP
l2_population = True

[securitygroup]
enable_security_group = True
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver

4.1.6 配置 DHCP 和元数据代理

# DHCP代理配置
sudo nano /etc/neutron/dhcp_agent.ini
[DEFAULT]
interface_driver = linuxbridge
dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq
enable_isolated_metadata = True

# 元数据代理配置
sudo nano /etc/neutron/metadata_agent.ini
[DEFAULT]
nova_metadata_host = controller
metadata_proxy_shared_secret = METADATA_SECRET  # 自定义密钥，需与Nova配置一致

4.1.7 同步 Neutron 数据库

sudo su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf \
  --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron

4.1.8 重启服务

sudo systemctl restart neutron-server neutron-linuxbridge-agent neutron-dhcp-agent neutron-metadata-agent
sudo systemctl enable neutron-server neutron-linuxbridge-agent neutron-dhcp-agent neutron-metadata-agent

4.2 计算节点配置

4.2.1 安装 Neutron 组件

sudo apt install -y neutron-linuxbridge-agent

4.2.2 配置 Linux 桥接代理

sudo nano /etc/neutron/plugins/ml2/linuxbridge_agent.ini

配置：

[linux_bridge]
physical_interface_mappings = provider:ens34  # 计算节点外部网络接口

[vxlan]
enable_vxlan = True
local_ip = 192.168.100.20  # 计算节点管理IP
l2_population = True

[securitygroup]
enable_security_group = True
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver

4.2.3 配置 Neutron 通用参数

sudo nano /etc/neutron/neutron.conf

配置：

[DEFAULT]
transport_url = rabbit://openstack:RABBIT_PASS@controller:5672/
auth_strategy = keystone

[keystone_authtoken]
www_authenticate_uri = http://controller:5000/
auth_url = http://controller:5000/
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = neutron
password = NEUTRON_PASS

4.2.4 重启服务

sudo systemctl restart neutron-linuxbridge-agent
sudo systemctl enable neutron-linuxbridge-agent

5. 仪表板 (Horizon) 部署（控制节点）

5.1 安装 Horizon

sudo apt install -y openstack-dashboard

5.2 配置 Horizon

sudo nano /etc/openstack-dashboard/local_settings.py

关键配置：

python

运行

# 配置Keystone认证地址
OPENSTACK_HOST = "controller"
OPENSTACK_KEYSTONE_URL = "http://%s:5000/v3" % OPENSTACK_HOST

# 配置默认域和项目
OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True
OPENSTACK_API_VERSIONS = {
    "identity": 3,
    "image": 2,
    "volume": 3,
}
OPENSTACK_KEYSTONE_DEFAULT_DOMAIN = "Default"
OPENSTACK_KEYSTONE_DEFAULT_PROJECT = "admin"

# 配置允许的主机
ALLOWED_HOSTS = ['*']  # 生产环境需指定具体IP

# 启用自助服务网络
OPENSTACK_NEUTRON_NETWORK = {
    'enable_router': True,
    'enable_quotas': True,
    'enable_distributed_router': False,
    'enable_ha_router': False,
    'enable_lb': False,
    'enable_firewall': False,
    'enable_vpn': False,
    'enable_fip_topology_check': True,
}

# 配置会话存储
SESSION_ENGINE = 'django.contrib.sessions.backends.cache'
CACHES = {
    'default': {
        'BACKEND': 'django.core.cache.backends.memcached.MemcachedCache',
        'LOCATION': 'controller:11211',
    }
}

5.3 重启 Apache 服务

sudo systemctl restart apache2

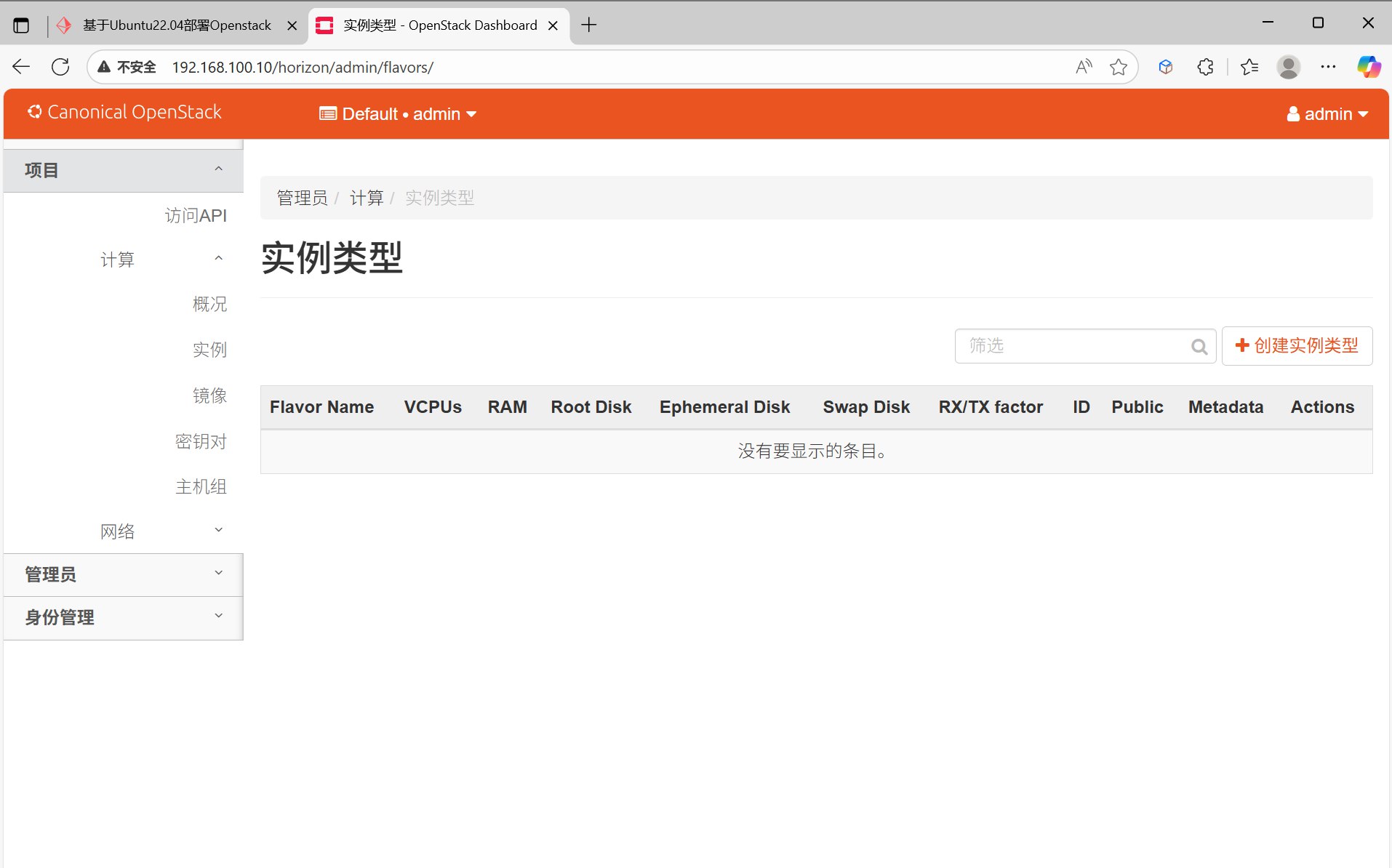

5.4 访问 Horizon 仪表板

通过浏览器访问：http://控制节点IP/horizon

账号：admin
密码：ADMIN_PASS （前面设置的）
域：Default

验证部署

所有服务部署完成后，在控制节点执行：

export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_DOMAIN_NAME=Default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=ADMIN_PASS
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2

openstack service list  # 查看所有服务状态
openstack compute service list  # 查看计算服务
openstack network agent list  # 查看网络代理

若所有服务状态为up，则部署成功。

七、验证安装

1. 下载一个测试镜像：

   1. wget http://download.cirros-cloud.net/0.4.0/cirros-0.4.0-x86_64-disk.img
   2. openstack image create "cirros" --file cirros-0.4.0-x86_64-disk.img --disk-format qcow2 --container-format bare --public

2. 创建网络、子网和路由

3. 启动一个实例进行测试
